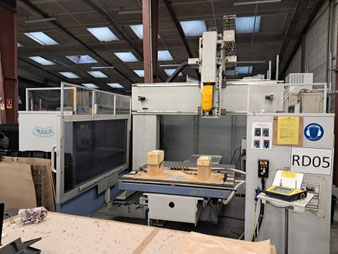

5-axis MAKA MM7S

Année/Year 2002

CNC single table + 2 milling spindles

Fraisage CN simple table + 2 broches



Commande/Control: BWO



Déplacement broche horizontal X

Horizontal spindle travel X

1700x2000 mm



Déplacement broche vertical Y

Vertical spindle travel Y

2000x2300 mm



Pince de serrage / Collet chuck ER16

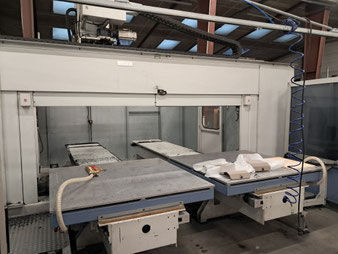

5-axis MAKA MM7S

Année/Year 2002

CNC DUO table + tool changer

Fraisage CN double table + chargeur d'outils



Commande/Control: BWO



Déplacement broche horizontal X

Horizontal spindle travel X

3300*1650 mm



Déplacement broche vertical Y

Vertical spindle travel Y

3150*1500 mm



Pince de serrage / Collet chuck ER16

Broche/Spindle HSK F63

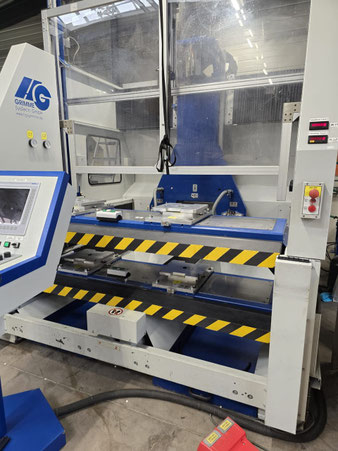

5-axis HG Grimme RT-F1400 DUO

Année/Year 2018



CNC rotary table milling machine with 2 milling spindles and 4 rotary tables



Fraisage CN 2 broches & 4 tables rotatives





Commande/Control: NUM

XYZ: 340 x 700 x 440 mm





5-axis CMS NC SB2000

Année/Year 1996

Commande / Control : NUM

X = 1337 mm

Y = 2000 mm

Z = 660 mm

B = +/-110 °



C = -10° / +370 °



5-axis CMS Triax PF1/R6

Année/Year 1988

Commande / Control : NUM

X : 2400 mm

Y : 1270 mm

Z : 320 mm

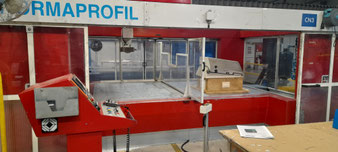

3-axis NORMAPROFIL CN3

Année/Year 1998

Commande / Control : NUM

X= 3360 mm

Y= 2115 mm

Z= 660 mm

C = 360 °

B = +110° -110°



5-axis MAKA 334R

Year 1999

Control: BWO 900C

X 1000 mm

Y 1000 mm

Z 550 mm

A - C

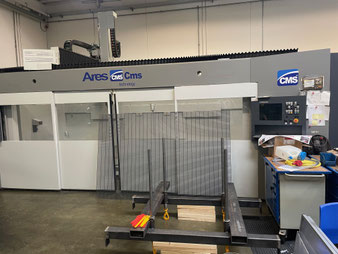

5-axis CMS ARES 4818 Reservation

Year 2017

Control: Fanuc

X 4800 mm

Y 1800 mm

Z 1100 mm

A - C

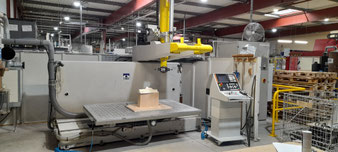

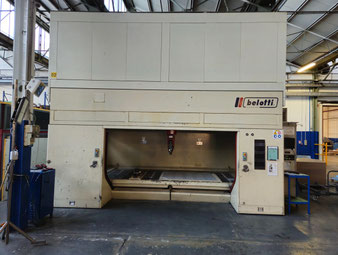

5-axis BELOTTI SOLD/VENDU

Year 2006

Control: Osai 8510i WinMedia series 10 pro

Electro spindle: 7kw at 2400rpm 9.5 HP

Tool changer: HK63F 8 positions

X 4900 mm

Y 1800 mm

Z 1300 mm

A 120° – C 540°

Machine complete with vacuum cleaner

5-axis BELOTTI SOLD/VENDU

Year 2000

Control: OSAI 10/310

Electro-spindle: 4

Tool changer: Revolver

X 1600 mm

Y 1200 mm

Z 800 mm

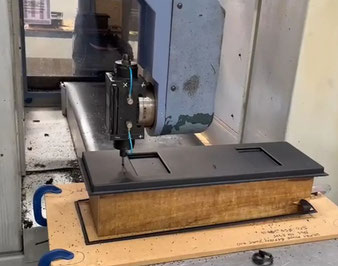

3-axis HAAS VF-2

VENDU/SOLD

Splendid condition

Year 2020





Travels:

X-axis 762 mm

Y-axis 406 mm

Z-axis 508 mm

Spindle nose to table (~ max.) 610 mm

Spindle nose to table (~ min.) 102 mm



Main equipment

10,000 rpm spindle

High-speed machining

CT-type tool changer

20-pocket tool changer carousel

Touch-screen control

Intuitive wireless probe system



Chip conveyor with worm screw





5-axis HG Grimme - DUO

VENDU/SOLD

Splendid condition

Year 2012

Travel paths X/Y/Z : 340 x 700 x 440 mm

Component dim. X/Y/Z : 300 x 250 x 240 mm

Table loading 4 x 100 kg

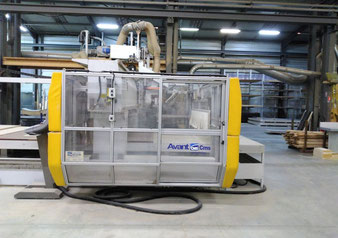

5-axis CMS AVANT VENDU/SOLD

Year 2011

Dim. Table : 6650mm x 1950mm

X : 6650mm

Y : 2810mm

Z : 720mm



Double twist head with tool changer

Standard squared table with vacuum clamp
